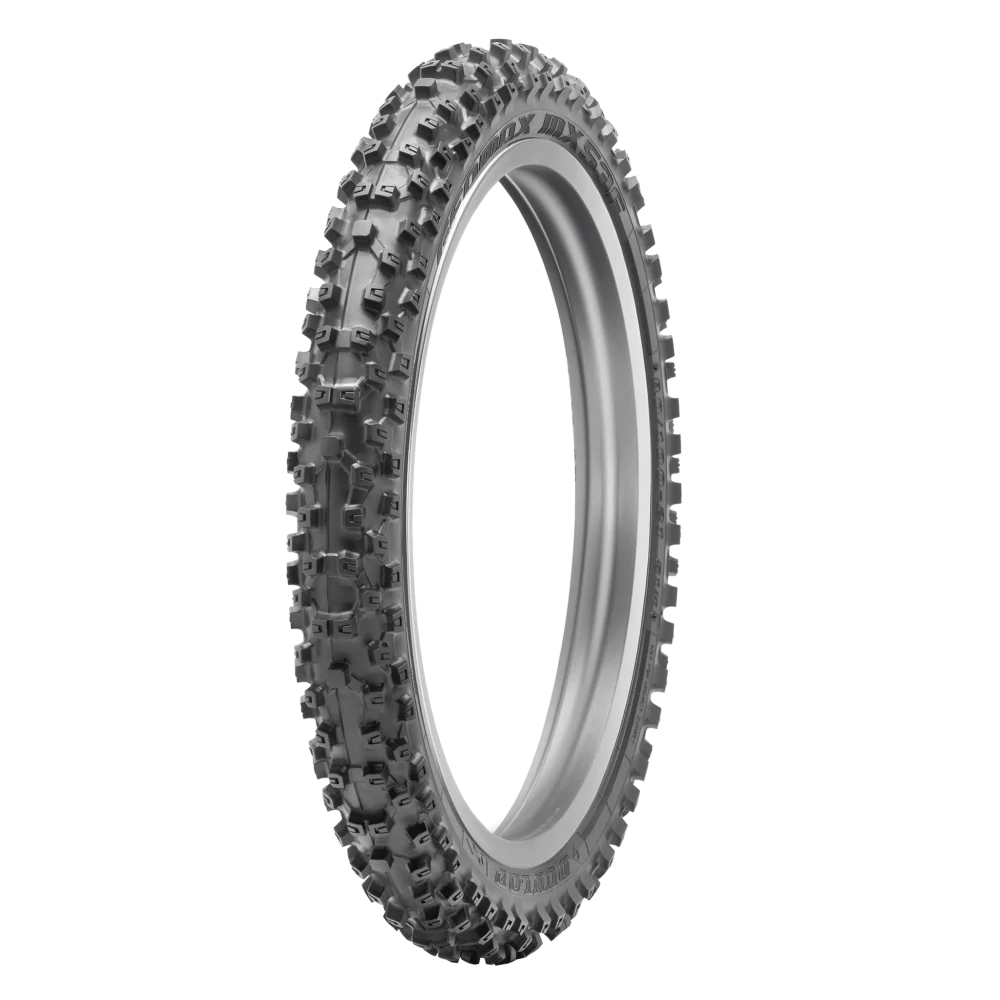

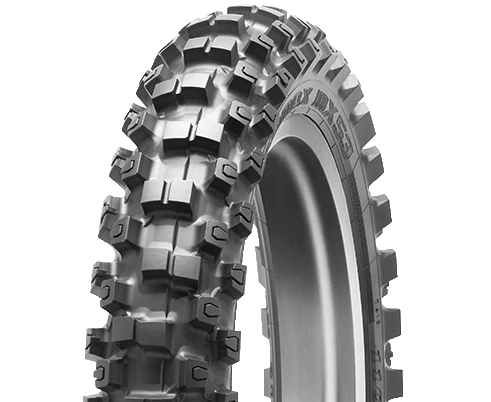

Dunlop geo max Mx53 for Surron, E-ride pro, Talaria and more...

GEOMAX MX53

Designed to offer performance in a wide variety of terrains, the Geomax MX53 excels in hard-packed track conditions while also offering greater versatility in intermediate riding conditions.

EVERY DUNLOP TIRE IS HAND INSPECTED BEFORE IT LEAVES THE FACTORY. (100% OF TIRES THAT LEAVE THE FACTORY ARE QUALITY INSPECTED.)

DEVELOPED IN CONJUNCTION WITH PRO MOTOCROSS RACERS.

ENGINEERED TO PROVIDE GRIP AND HANDLING FOR OFF-ROAD PERFORMANCE.

FEATURES

Geomax MX53

The front tire has been redesigned with a taller profile to offer a larger contact patch, providing gentler handling, a higher lean angle, and better maneuverability.

MX53 front tire blocks are 1mm higher and have been redistributed to give riders better steering feel and more biting edges.

A horseshoe pattern of blocks on the front tire reduces the stiffness in the center of the tire to offer greater ride compliance. The unique pattern of the horseshoe blocks also grabs the dirt to provide better braking grip.

Block-In-A-Block technology has been added to the front tire of the MX53 in order to aid in linear tracking and improved steering.

The altered Block-In-A-Block shape on the rear tire allows for added flex in the knob to enhance grip while providing stability and slide control.

Front and rear tires include tie bars between select knobs to reduce flex at the base of the knobs, improving durability.

Dunlop’s Advanced Apex Design improves shock absorption by diffusing shock through a taller, thinner apex inside the sidewall.

New compounds on the front and rear tire enhance durability and longevity.

BLOCK-IN-A-BLOCK

Offers more progressive cornering action and additional slide control.

INTERMEDIATE

Works in a mix of packed and loose soil.

HARD

Works in hard packed conditions.

OFF-ROAD

Provide grip and handling for off-road performance

TIRE NAME

SIZE

LOAD/SPEED INDEX

PART NUMBER

APPLICABLE RIMS

RECOMMENDED RIM

OVERALL DIAMETER

OVERALL WIDTH

FULL TREAD DEPTH

MAXIMUM LOAD @ PSI

MX53 FRONT

60/100-10

33J

45236325

1.50

15.19

2.63

10/32

MX53 FRONT

60/100-12

36J

45236955

1.50

17.24

2.67

10/32

MX53 FRONT

60/100-14

29M

45236531

1.40

19.33

2.83

12/32

MX53 FRONT

70/100-17

40M

45236661

1.40

23.22

3.34

13/32

MX53 FRONT

70/100-19

42M

45236512

1.40

25.31

3.26

13/32

MX53 FRONT

80/100-21

51M

45236987

1.60

27.99

3.50

15/32

MX53 REAR

70/100-10

41J

45236262

1.50

15.66

3.18

13/32

MX53 REAR

80/100-12

41M

45236400

1.60

18.54

3.66

16/32

MX53 REAR

90/100-14

49M

45236470

1.60

21.41

4.05

18/32

MX53 REAR

90/100-16

51M

45236423

1.60

23.97

4.33

18/32

MX53 REAR

100/100-18

59M

45236865

1.85

26.25

4.56

20/32

MX53 REAR

110/100-18

64M

45236568

2.15

27.28

4.96

21/32

MX53 REAR

120/90-18

65M

45236545

2.15

26.92

5.15

21/32

MX53 REAR

100/90-19

57M

45236253

1.85

26.85

4.60

20/32

MX53 REAR

110/90-19

62M

45236424

2.15

27.51

4.92

20/32

MX53 REAR

120/80-19

63M

45236685

2.15

27.16

5.23

20/32

MX53 REAR

120/90-19

66M

45236791

2.15

27.79

5.27

20/32
