EBMX X-9000 3.5" Full color display

EBMX 3.5" TFT Enhanced Display | By EBMX | For X9000 V2 & V3 Controllers

EBMX Enhanced Display for X9000 Controllers – Available at REV Rides

If you’re running an

EBMX X9000

and want real-time insight into what your bike is doing, this is the upgrade that completes the system. The EBMX 3.5" TFT Enhanced Display was built specifically for the X9000 platform, giving you instant visibility of motor temp, controller temp, ride data, and system performance through the all-new EBMX UI.

At REV Rides, we always tell riders the same thing, power is nothing without control. This display gives you both. Whether you’re pushing hard enduro, tuning for race day, or just dialing in your daily ride, you’ll know exactly what your setup is doing.

Purchase a CNC Case for it Here

Important Compatibility Note

• V2 version works with X9000 V2 controllers.

• V3 version available for X9000 V3 controllers.

• Not compatible with X9000 V1 controllers (2024 and earlier).

• Not compatible with other controller brands.

• Not plug and play for Ultra Bee R models with indicators or headlights.

(

Drop In Mount for Ultra Bee Purchase seperately)

Key Features

Base Kit Includes:

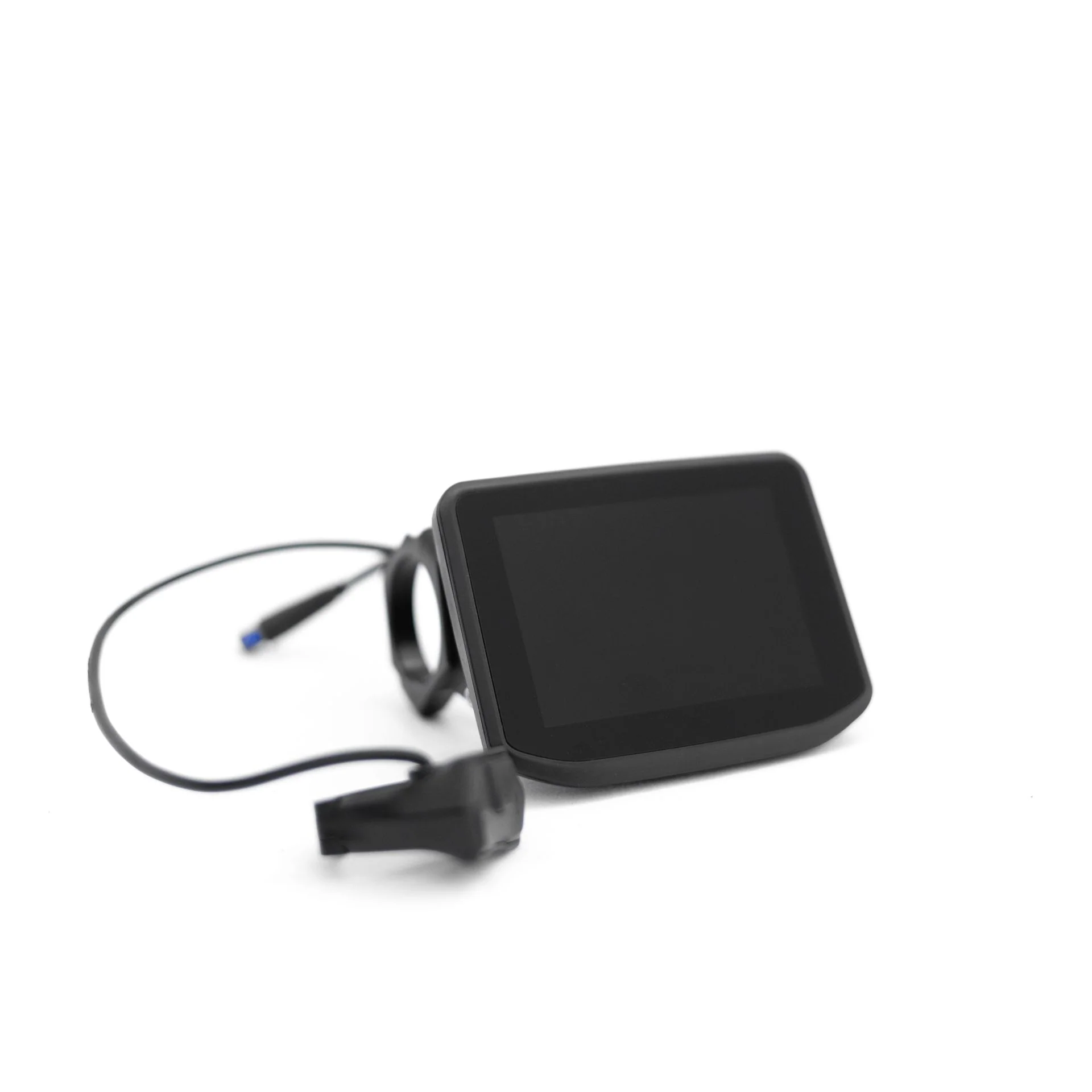

3.5" TFT full color display

All-new EBMX UI with ride data

CNC mounts for MTB and Moto bars, 31.8mm and 28.6mm

New CANbus 2-1 cable included

New mode button included

Display to button cable length: 350mm

Display to CANbus connector length: 250mm

IP67 waterproof rating

No setup required, 830 and above firmware required

The included billet aluminum single center post mount allows flexible positioning across different stems and bar setups. With the provided shims, you can mount cleanly to both MTB 31.8mm bars and Moto 28.6mm bars.

Available to purchase separately:

CNC Case for the display (Purple, Red, Black, Blue)

Purchase a CNC Case for it Here

Drop In Mount for Ultra Bee

Performance & Data Monitoring

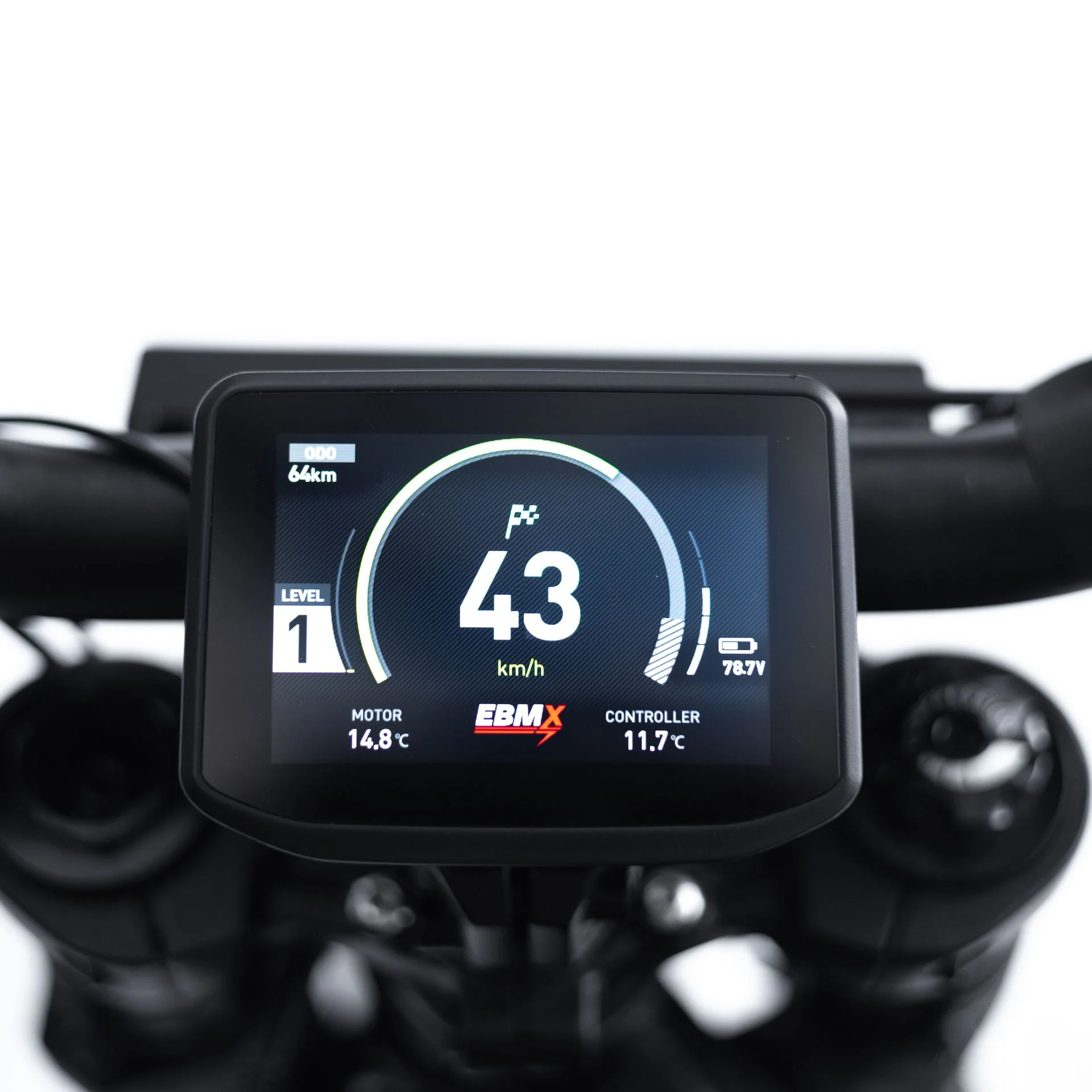

The display communicates through high-speed CAN bus technology, delivering fast and accurate real-time data. You can monitor:

Motor temperature

Controller temperature

Ride data and system feedback

Mode changes through the included button

For riders pushing higher voltage setups, upgraded motors, or aggressive tune profiles, temperature monitoring is critical. This display keeps you informed so you can ride harder with confidence.

Built to Handle Real Riding

This is not a plastic bicycle display. The CNC aluminum bar clamps and billet mounting hardware are built for off-road and on-road abuse. EBMX components are engineered for high-performance builds, featuring fully waterproof IP67-rated connectors and durable construction designed to survive serious riding.

CNC display cases are available separately in Purple, Red, Black, and Blue. A Drop-In Mount for the Ultra Bee is also available separately.

Why This Display Stands Out

What makes this display different is integration and simplicity. It is designed specifically for the X9000 ecosystem, meaning no complicated setup, no guesswork, just plug it in and ride when running firmware 830 or newer. The upgraded EBMX UI gives a clean, performance-focused interface that matches the capability of the controller.

If you’re already investing in an X9000 build, this display is the missing piece that gives you full control and visibility of your system.

Best For

High-performance X9000 builds running upgraded batteries and motors

Hard enduro and aggressive trail riders monitoring temps

Riders who want a clean, professional cockpit setup with full data visibility

If you’re building it right, finish it right. The EBMX 3.5" TFT Enhanced Display brings pro-level monitoring and clean integration to your X9000 setup.

Videos for your EBMX controller

REV Rides' Detailed EBMX X9000 Installation Video with Tips & Tricks:

EBMX uses components sourced from reputable suppliers. Every part has been engineered for maximum performance. From the CNC machined internals, bus bars, and injection molded cover, to the fully waterproof construction.

Whether you are trying to nail a wheelie, riding hard enduro, competing in a race series, commuting to work, or just cruising the trails with your family – the X-9000 is built to give you ultimate freedom and control.

EBMX Mobile Application Overview

Custom EBMX App for tuning and full control (Available free in the App Store and Google Play Store)

Multiple power modes and full adjustment in each mode

Adjustable speed limits for different ride modes

Customizable dashboard to set the display up how you want

Built-in and programmable DC/DC Converter with 4 programmable 12v outputs for running a coolant pump, headlights, and other 12v accessories as required and controllable through the app.

Air-cooled heatsink as standard (comes in black, blue, red, gold or purple).

Wiring harness connections are fully sealed and come straight out of the controller with fully waterproof IP67-rated connectors for the harnesses.

Direct bolt-in for the Sur Ron Light Bee and Talaria Sting bikes with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).

Integration with both Sur Ron hall-based motors and Talaria encoder motors

SW102 (EggRider) Display included and custom firmware to allow monitoring of motor temp, controller temp along with all of the regular display info.

Can be setup with a smart phone for the display or to check info as desired

Super heavy-duty construction internally and externally to sustain hard riding and high-powered batteries and motors.
