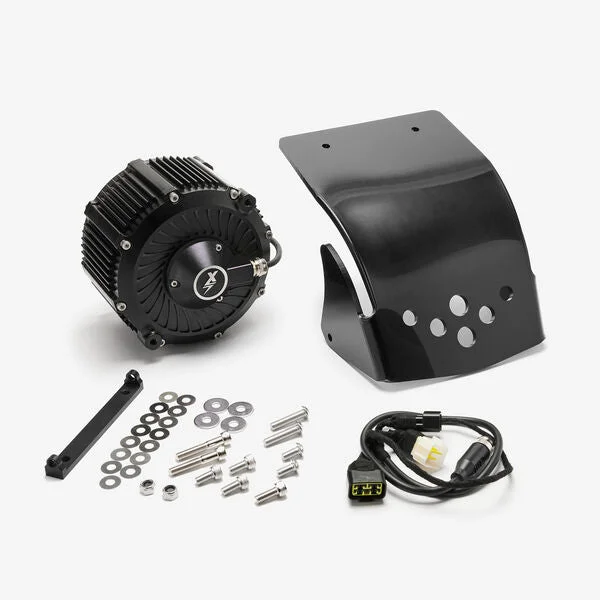

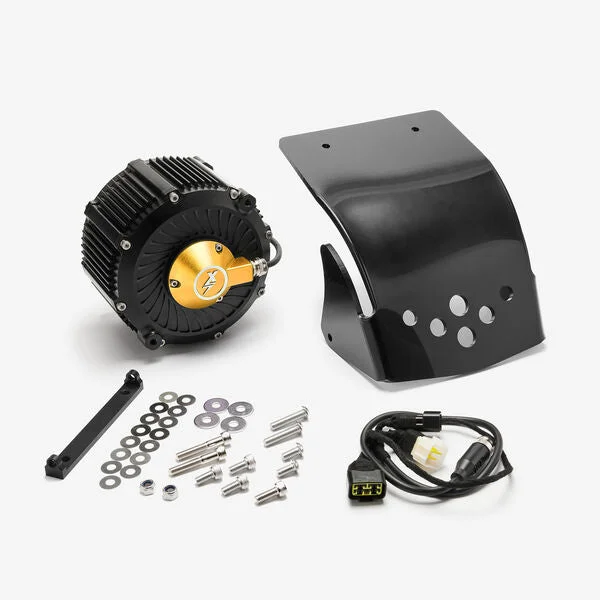

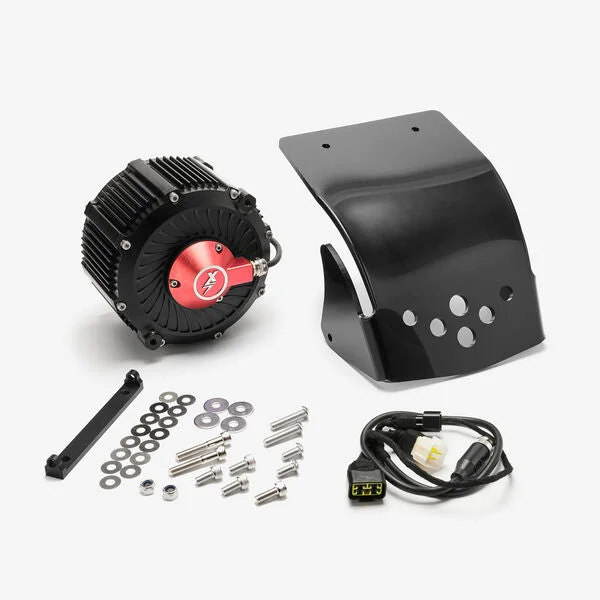

EBMX XLB-60 Race Motor for Sur Ron Light Bee

IMPORTANT:
A custom EBMX Bash Plate is included with your motor.
The EBMX motor range has been specifically designed to surpass the performance of other motors in their classes. The XLB-60 RACE edition, designed for speed and maximum RPM, this is the fastest motor on the market!
Using our EBMX rotor design we have lengthened the torque band to create a constant pulling force from 0 to 13000RPM. The XLB60 RACE is aimed at the racer, from MX to trail or even the drag strip, designed to handle the heat and bring insane levels of RPM.
The EBMX motors have been custom built and are finely tuned to work with the EBMX X-9000 controller.
Harness and mount sets are available to use this motor with SurRon Light Bee or Eride Pro.
The motor has a larger stator that its little brother the XLB-60 going up from 60 to 65mm and a screaming 105kv wind.
More Power, More Speed, More Fun, More Savage!
Recommend X9000 Settings on a 400Amp BMS 20S22S
1000 Phase / 30KW
900 Phase / 25KW
800 Phase / 20KW
We built these motors to stay cool under race conditions to ensure you focus on your riding and not your motor temperatures. It doesn’t matter if you are on the track, street or local trail, if you want the best, then this motor is for you.
35KW rated and tested, designed from the ground up to handle the heat, 180C rated windings with U42H magnets
Custom IPM rotor design and industry leading 1mm rotor air gap revving out to rated 13000RPM. Encoder based motor control for increased low end torque response and smooth predicable power delivery.
In contrast to many of our competitors who utilise hall sensors we have opted to incorporate encoder sensors in our motors This decision stems from the fact that encoder sensors demonstrate greater stability under demanding riding conditions While hall sensors rely on estimated rotor positions encoder sensors consistently provide precise angle measurements of the rotors position Hall sensors are typically employed for tracking motor position during startup and up to approximately 2000 rpm after which the motor operates in a sensorless manner However during intense riding situations such as wheel spinning and sudden deceleration combined with rapid throttle adjustments hall sensors angle detection can result in substantial current spikes in the controller This can pose significant issues for many controllers leading to tripping and loss of throttle power although this is less prevalent in the X9000
In contrast to many of our competitors who utilise hall sensors, we have opted to incorporate encoder sensors in our motors. This decision stems from the fact that encoder sensors demonstrate greater stability under demanding riding conditions. While hall sensors rely on estimated rotor positions, encoder sensors consistently provide precise angle measurements of the rotor’s position. Hall sensors are typically employed for tracking motor position during start-up and up to approximately 2000 rpm, after which the motor operates in a
In contrast to many of our competitors who utilise hall sensors, we have opted to incorporate encoder sensors in our motors. This decision stems from the fact that encoder sensors demonstrate greater stability under demanding riding conditions. While hall sensors rely on estimated rotor positions, encoder sensors consistently provide precise angle measurements of the rotor’s position. Hall sensors are typically employed for tracking motor position during start-up and up to approximately 2000 rpm, after which the motor operates in a
Encoder sensors, on the other hand, are capable of tracking motor position at all speeds and do so more frequently than hall sensors. As a result they can deliver a smoother more responsive and controllable powerband and they do not generate the same type of current spikes that often cause controller issues. Furthermore, they contribute to improved low-end torque control and overall motor response.
EBMX motor have been custom built and are finely tuned to work with the EBMX X-9000 controller. These motors will work with many other types of controllers, however they may require you to do your own custom tuning.
