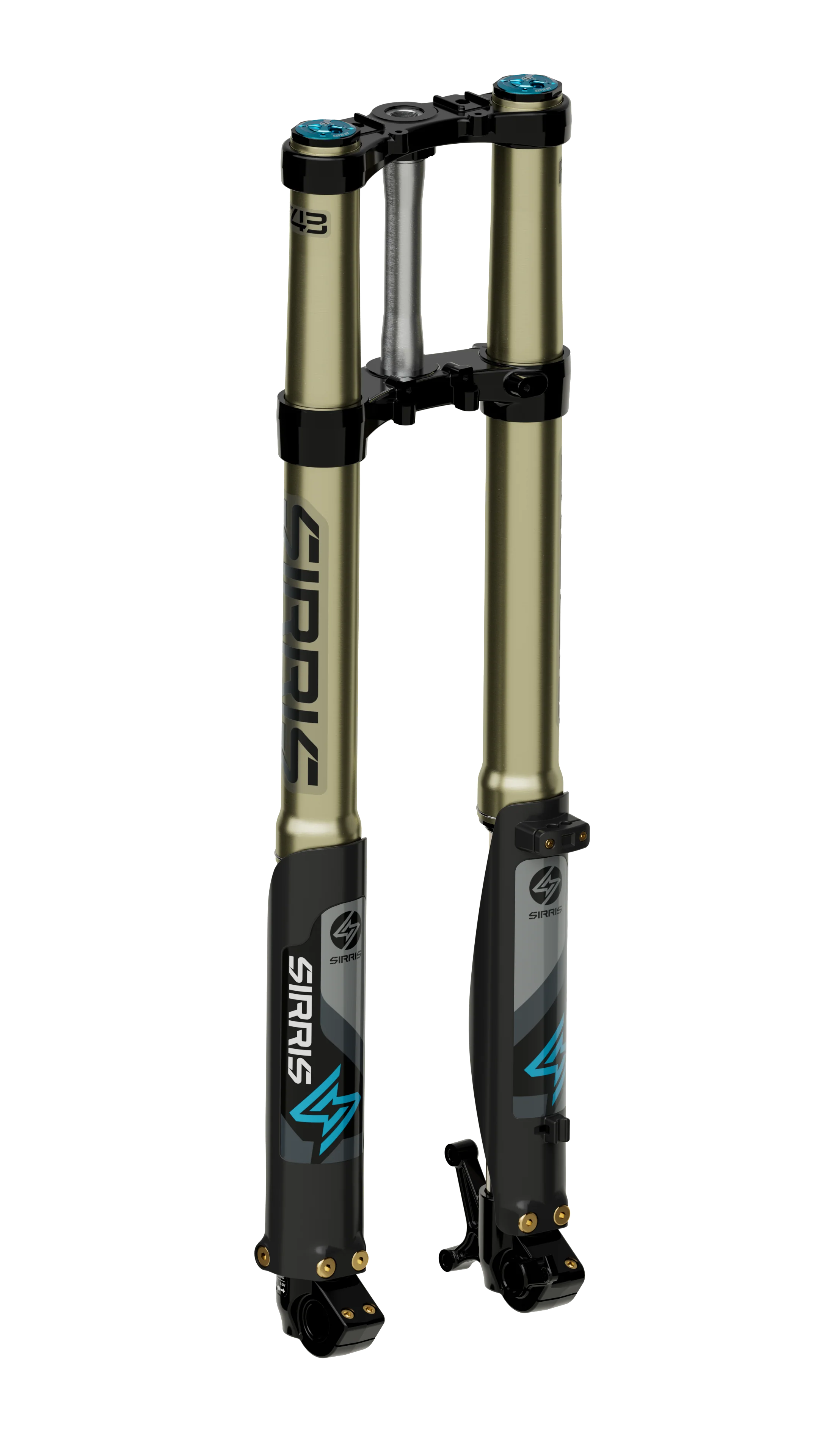

Sirris F43 246mm Fork | Trail-Tune | LSC | Surron Ultra Bee
Trail Tune is a very versatile and aggressive tune that is sporty and supportive, designed to go fast over a wide variety of terrain. RIDER WEIGHT SPECS: Sirr
Product Overview
Trail Tune is a very versatile and aggressive tune that is sporty and supportive, designed to go fast over a wide variety of terrain.
RIDER WEIGHT SPECS:
Sirris offers six weight ranges to choose from when selecting your Trail Tune F43 fork. (
Listed weight ranges are rider weight without riding gear on. 15 pounds of riding gear is calculated into the weight ranges)
130 lbs - 160 lbs (Light = 4.0/4.0 springs)
160 lbs - 210 lbs (Medium
= 4.8/4.4 springs)
210 lbs - 230 lbs (Heavy
= 5.0/4.8 springs)
230 lbs - 250 lbs (X Heavy
= 5.0/5.0 springs)
250 lbs - 280 lbs (XX Heavy
= 5.4/5.0 springs)
280 lbs - 350 lbs (XXX Heavy
= 5.8/5.4 springs)
Fork spring rates listed above are left side/right side.
FORK SPECS:
Architecture
Upside down fork
Travel
246 mm
Free length
856 mm
Fork weight, includes clamps and steerer
22 lbs / 10kg
Stanchions
Ø43, high tensile steel with hard chrome
Outer tubes
Seamless 7050 aluminum, type 3 hard anodized coating
Drop outs
Forged 6061 aluminum, type 3 hard anodized coating
Triple clamps
Forged 6061 aluminum, type 3 hard anodized coating
Steer tube
Seamless 7050 aluminum, type 2 anodized coating
Damping
Symmetrical, adjustable closed cartridge with spring backed IFP
Damper bodies
Seamless 7050 aluminum, type 3 hard anodized coating
Rebound
Dual side high tensile steel spring, adjustable
Adjusters
External compression and rebound adjustment
Seals
NBR
Guards
High impact PP, 210-degree wraparound
Technical Specifications
| Brand | Sirris Store |
|---|---|
| SKU Identifier | 430-99-001-LTE-XX 43MM USD, 856MM X 246MM, 25MM OFFSET, SURRON UB AM, LTE |
| Warranty Term | 2 Years Limited Warranty |
