SURRON LIGHT BEE S (DISCONTINUED)

SURRON LIGHT BEE S (Discontinued)
Based on the popular
Light Bee X
, the

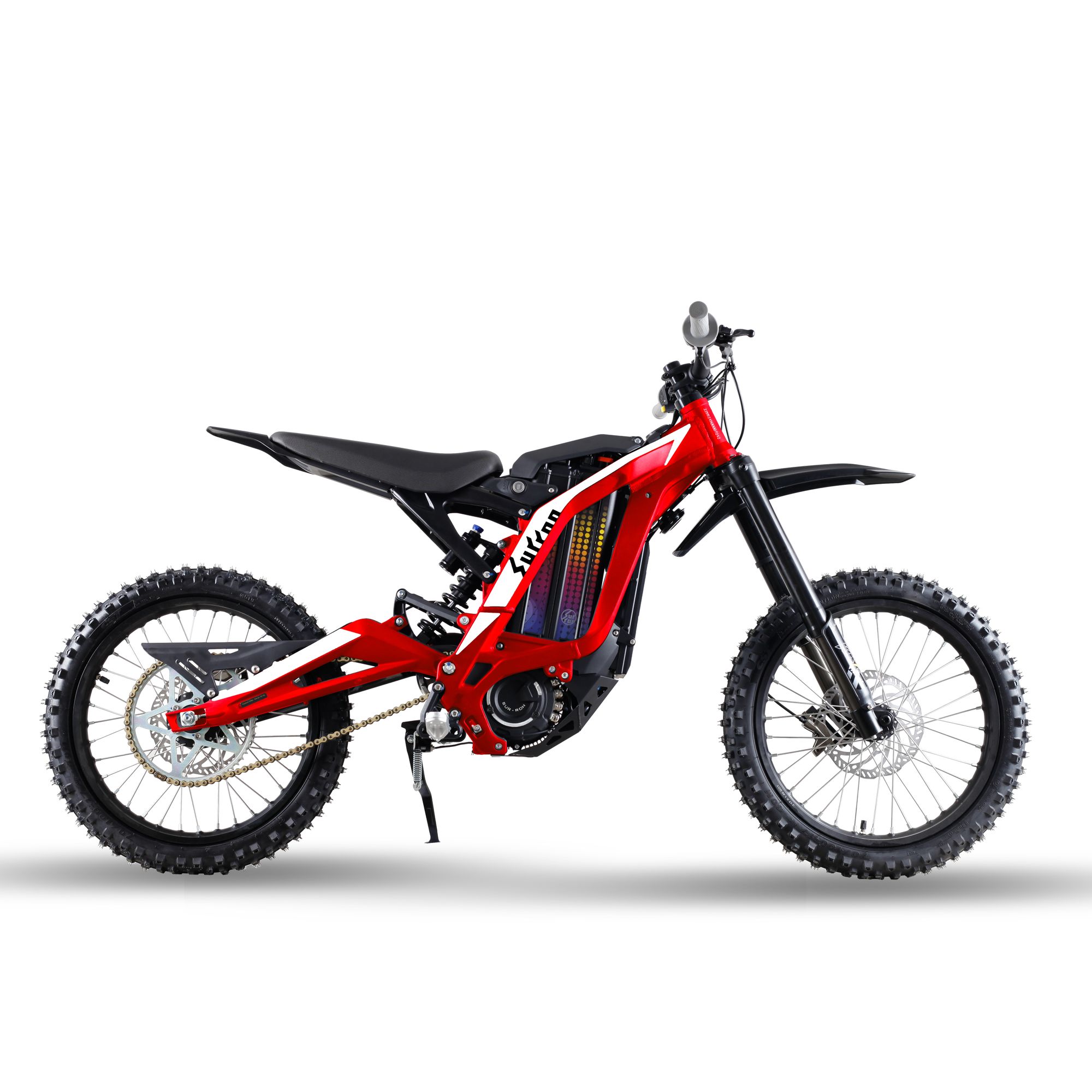

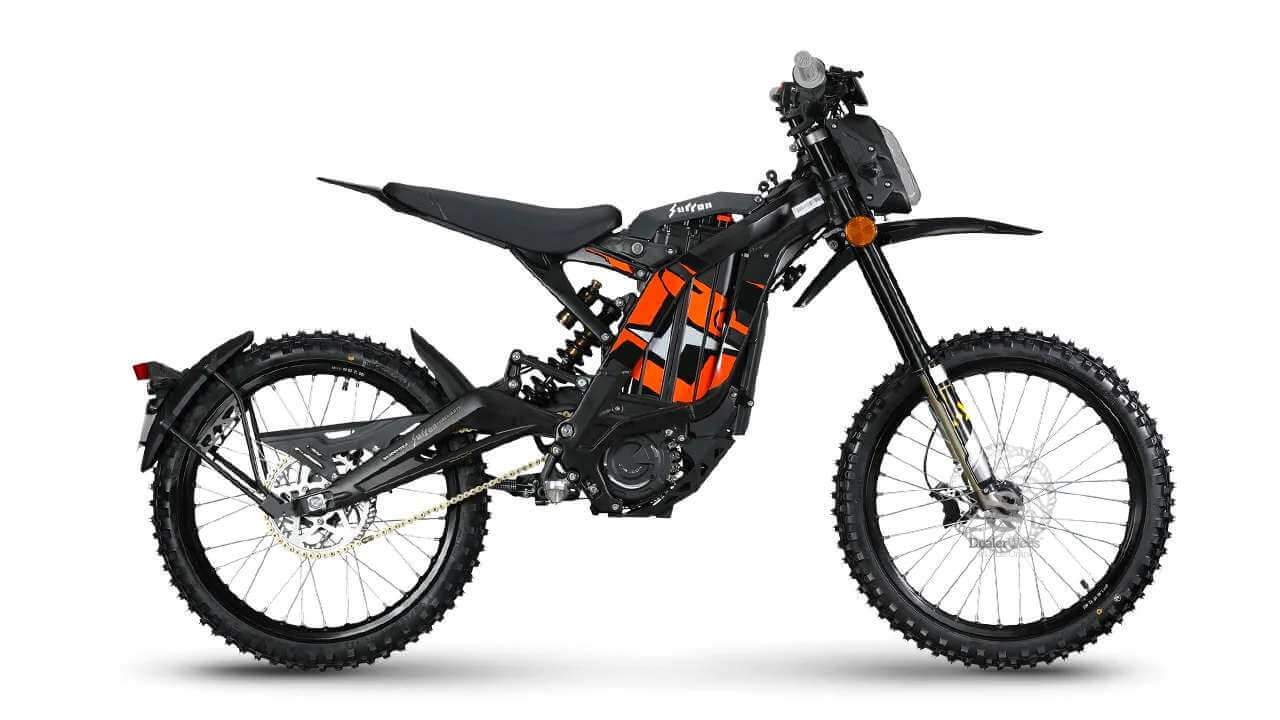

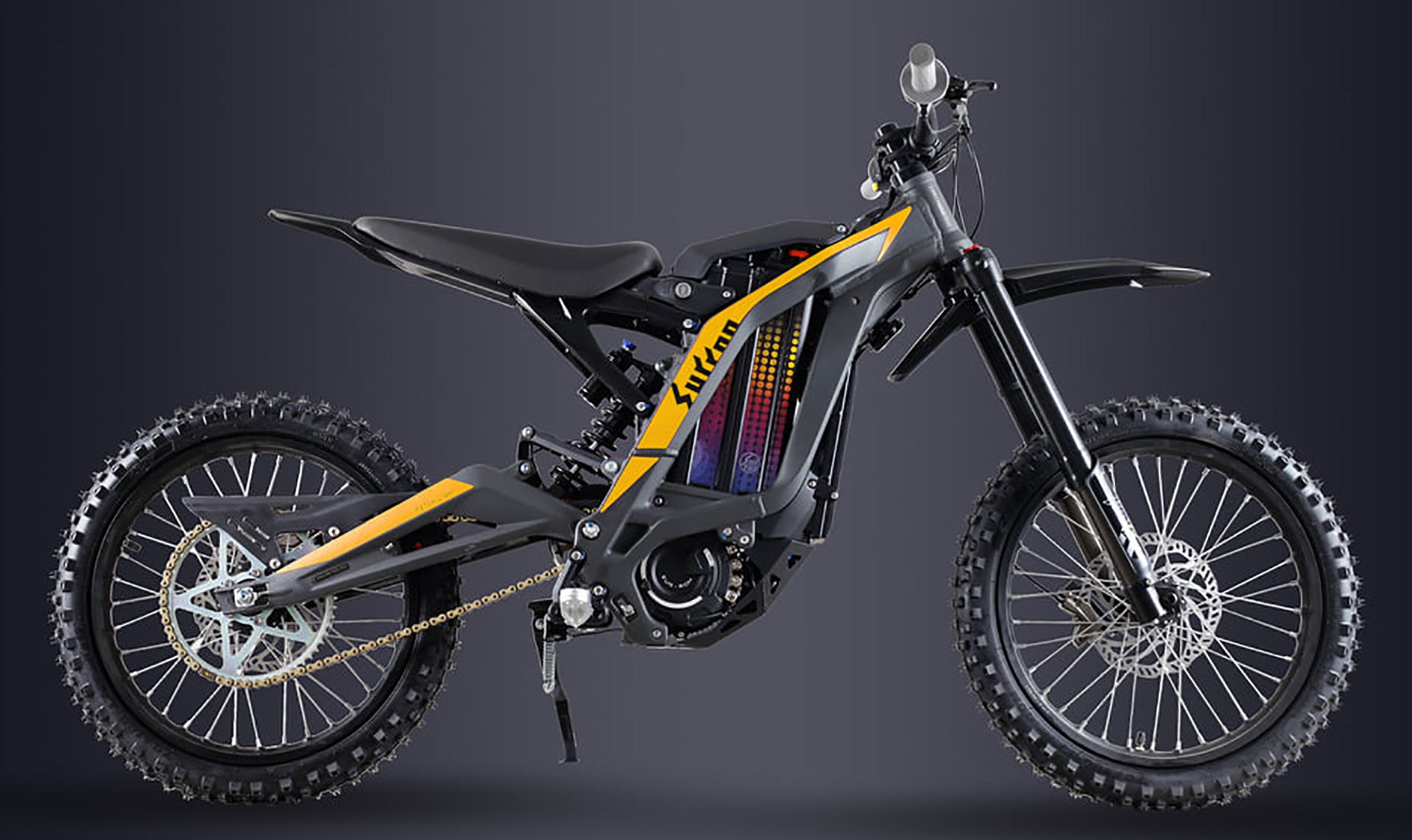

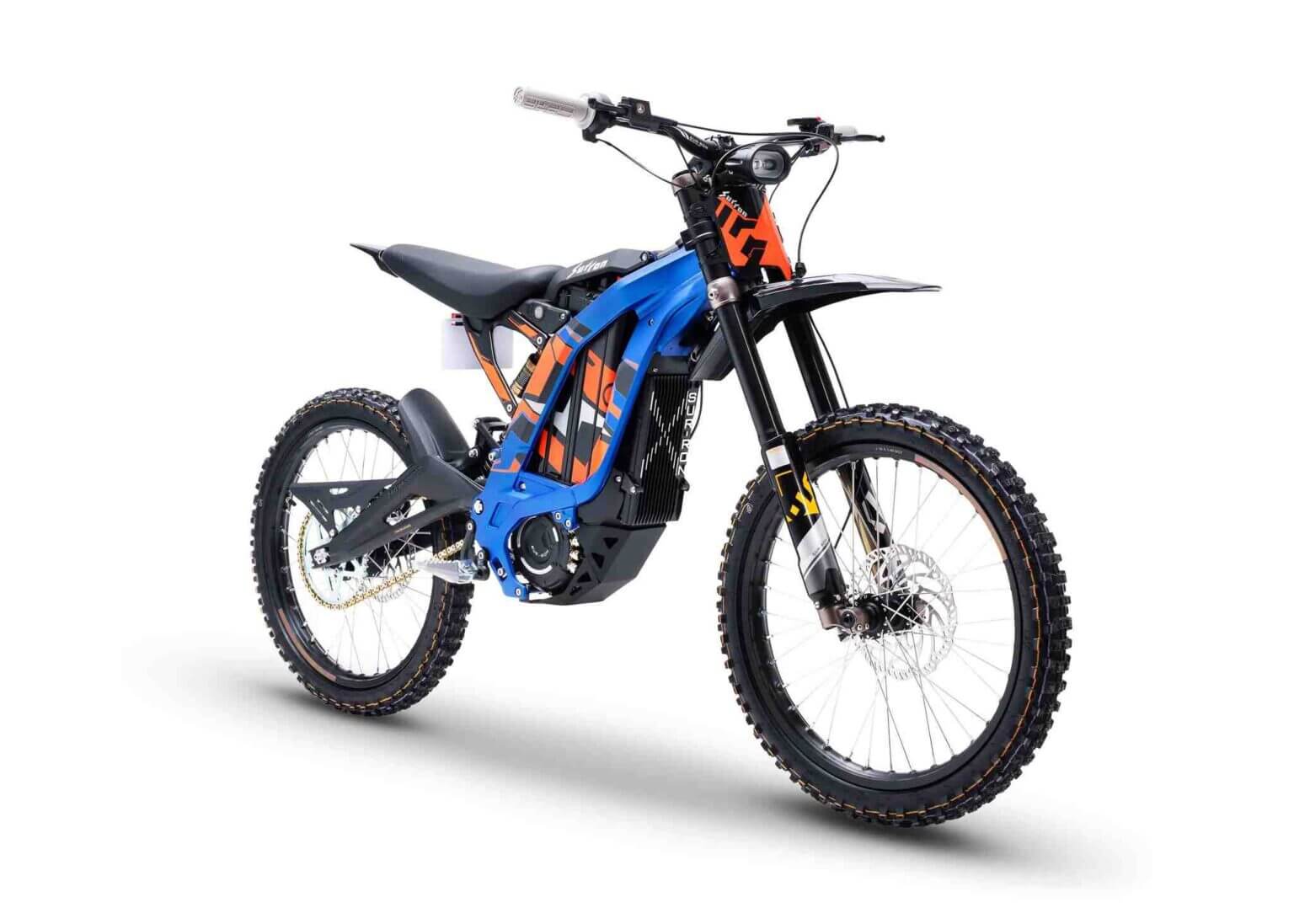

Surron Light Bee S
model is aimed at youth aged 10 and up. It features MX-style suspension, 17-inch wheels and a 48V removable lithium battery pack.
Anytime, Anywhere
From mountaintops to valleys, from the track to the trails, your Light Bee S can take you to anywhere you want. It’s easy and fast to recharge, too.
Improve Your Riding Skills
Easy to ride, the Surron Light Bee S is a perfect stepping stone to larger electric bikes. Ride easy and free without worrying about gears, and focus only on the riding itself. That’s your Light Bee S.
Excellent Performance and Great Manoeuvrability
With a friendly ECO mode and peak torque output of 220 Nm in Sports mode, new riders can go faster as they learn. With 17-inch wheels and knobby tires, the Light Bee S gives you great manoeuvrability all the time.
*Unless otherwise noted, ALL products sold from Sur Ron™ and authorized dealers are sold with the sole intention for off road or race track use only. This product or products may not comply with some State, Federal, Provincial and/or Local laws, ordinances, regulations. The buyer takes full responsibility of the use of these products on their vehicle which may or may not conform to all applicable laws and regulations for on road or highway use.
Light Bee S Specifictations
MOTOR SPECS
Motor Type
Air cooled permanent magnet synchronous motor
Mounting position
Middle of frame
Weight / Motor external dimensions
7.0kg / 180mm
Motor axle length
130mm
Peak Efficiency
95.60%
Cooling method
Air Cooled
CONTROLLER SPECS
Controller type
Sinewave controller
Dimensions
240mm x 110mm x 50mm
Travelling wave current / highest working temp.
70A / 110°C
MOTOR POWER SYSTEM SPECS
Rated voltage
48v (DC)
Rated power / peak power
2kw / 2.9kw
Rotation Speed
5000rpm
Road legal
No
TRANSMISSION SPECS
Gear Ratio
1:9.18
Transmission
Belt and Chain
Belt brand & model
German Continental Brand, 8M CXA
BATTERY SPECS
Battery
48v 20 amp Lithium 12 cell battery
VEHICLE SPECS
Chassis material
No.6061 T4 & T6 aluminium alloy
Chassis process method
Forged by 6000 tons of pressure
Chassis weight
7.8kg
Chassis surface & colour processing
Painted
LED headlight
No
Wheel type & size
Aluminium alloy spoke wheels, Front/Rear 17 x 1.4
Tyre size
Front/Rear 70/100-17
Tyre brand
CST brand tyre
Top speed
30mph
Max range
40 miles @ 15mph
Net weight
48kg
Vehicle dimension
1820mm x 730mm x1020mm
Seat height
760mm – Age 10 to 16
Wheel base
1250mm
Handlebar width
720mm

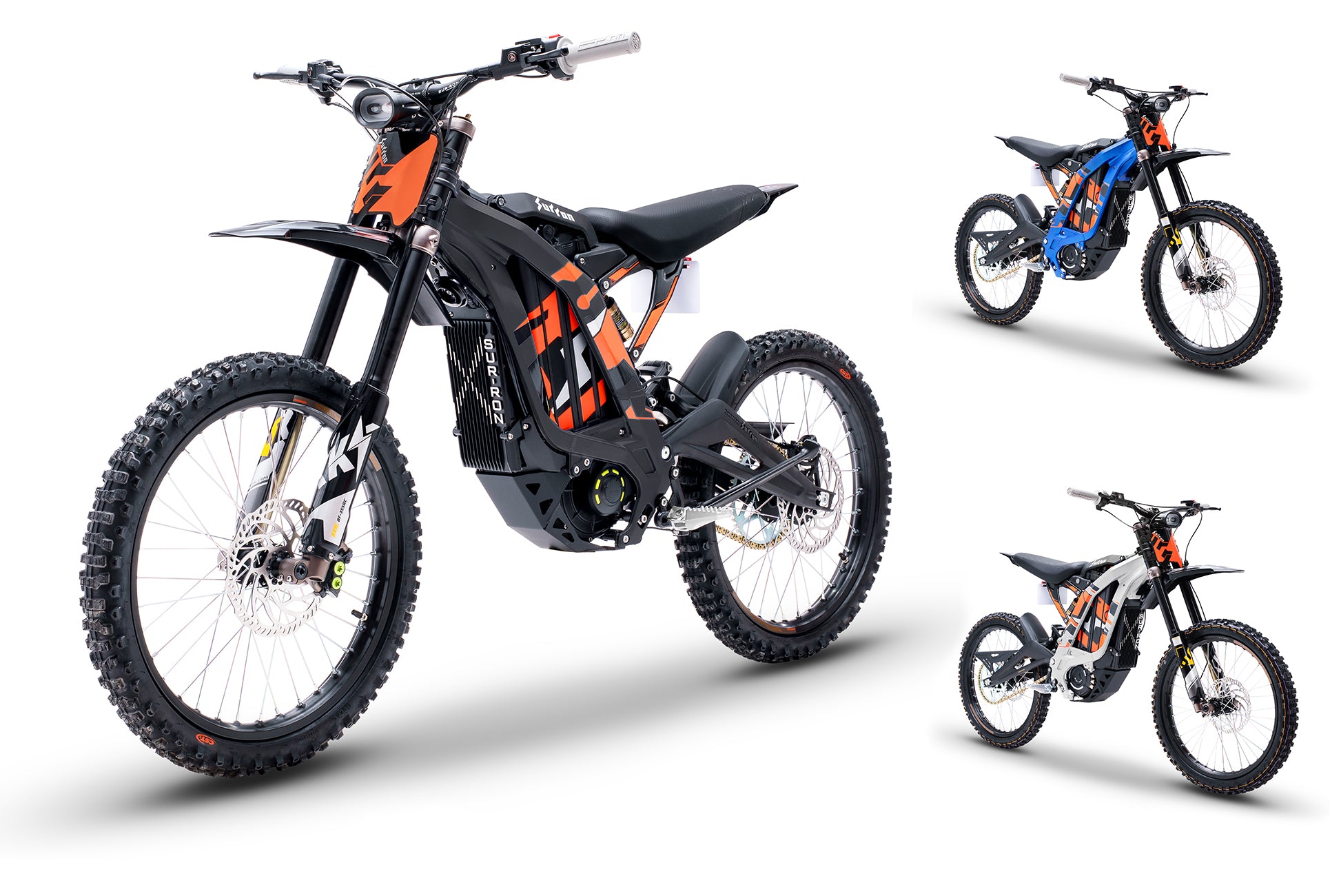

Available colours
Black, Blue, Red
Charger
5Ah
Charging time
4-4.5 hours
Front absorber
KKE up-side-down hydraulic absorber
Rear absorber
KKE absorber with intersect TR suspension system
Front & Rear brake
Bilateral FOUR piston caliper hydraulic disc brake
Maximum load
75kg
Maximum climbing ability
25°
Minimum ground clearance
220mm
Speedometer
LCD digital speedometer
Discontinued
Light Bee S Owner’s Manual
