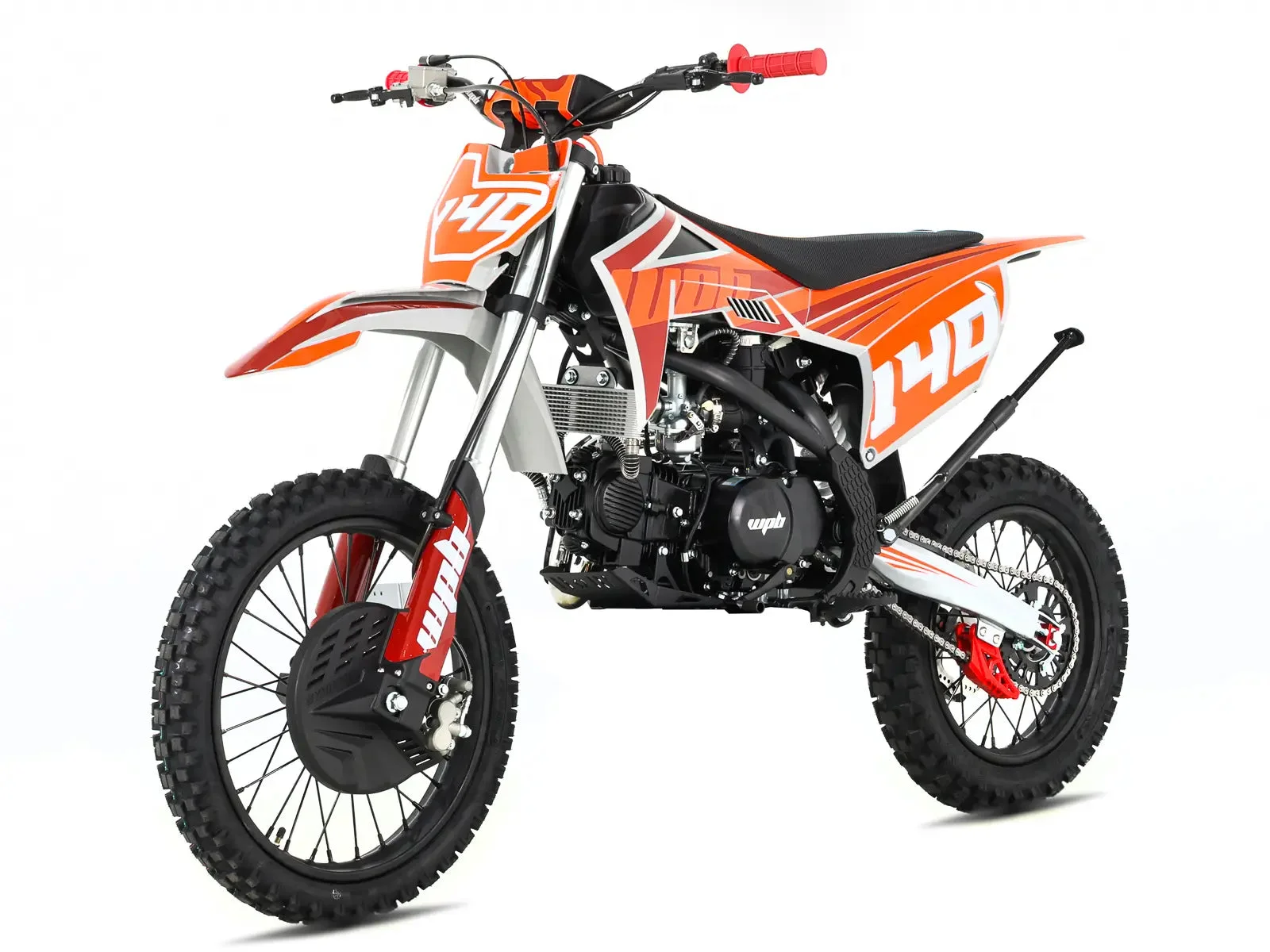

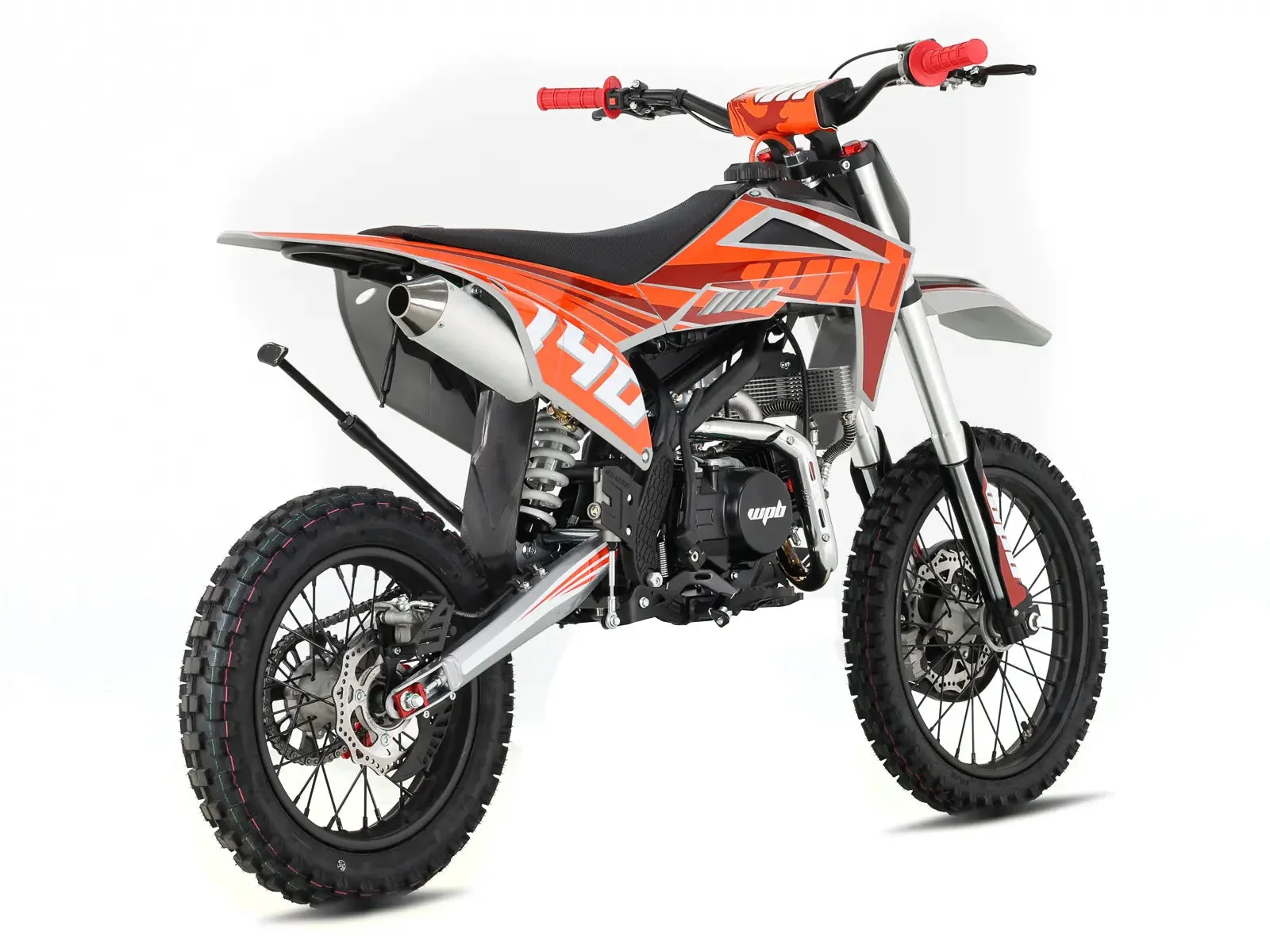

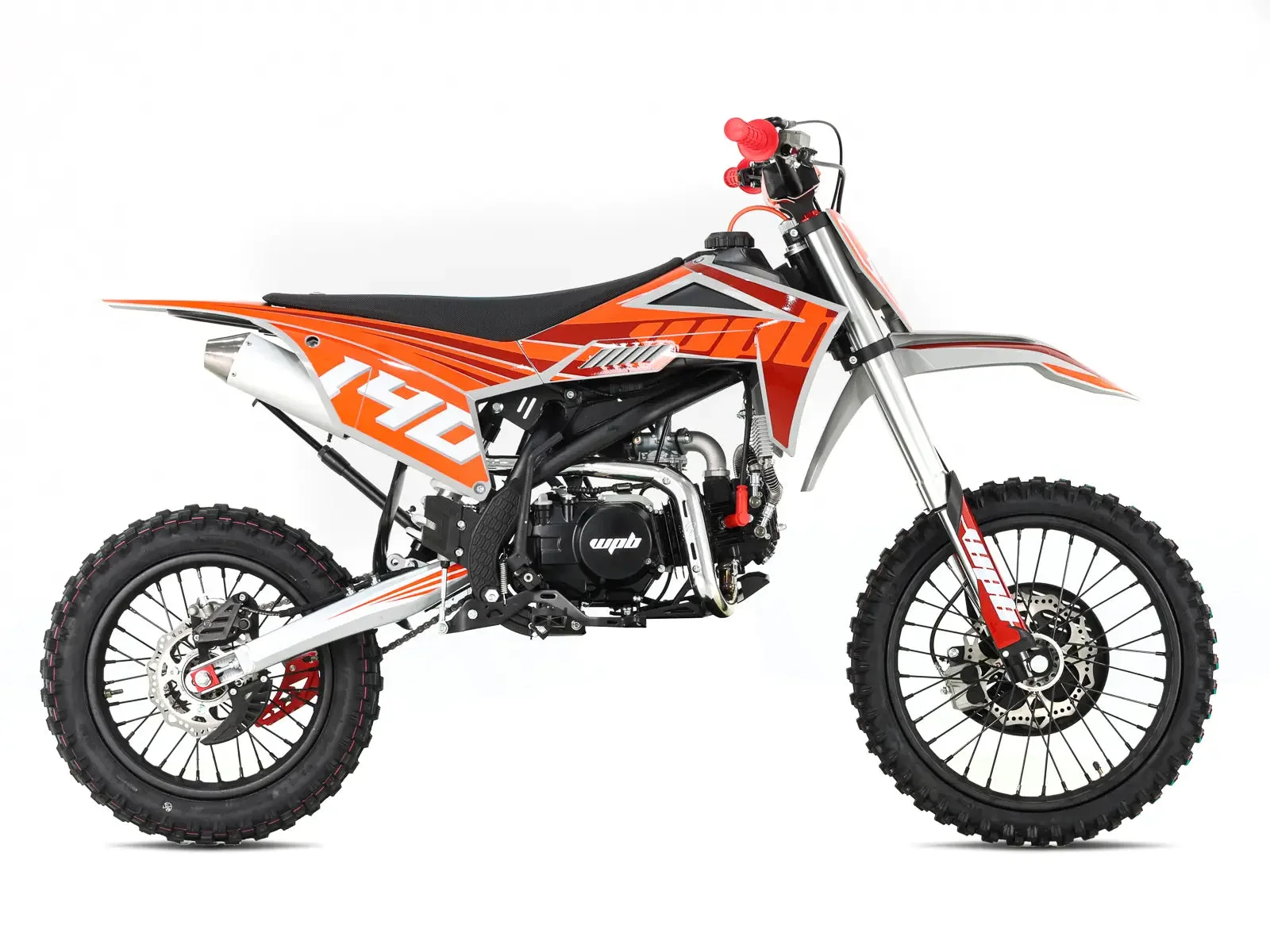

WPB 140

The third generation of the WPB140 is finally here. Drop-dead stunning looks, an all-new race cradle chassis, and a soundtrack to rival any other pit bike on the market WPB140-V3 Boasting the legendary 14 hp YX140 N1234 bulletproof engine, the third generation of the WPB140 is finally here. Drop-dead stunning looks, an all-new race cradle chassis, and a soundtrack to rival any other pit bike on the market (bar the 212 BEAST, of course!) The WPB140 V3 features numerous upgrades and improvements over previous models, including a fully enclosed airbox with an internal foam race filter, rim lock, 7-series alloy handlebars, a hand-built Y140 race engine, and new plastics accented by our latest graphics design. Attention to detail shines through in features like a brake snake, fold-back levers, rim lock, caliper and disc guards, frame protectors, color-coded grips, breather, and plug cap. Every inch of this bike has been meticulously crafted to make it the most exciting 140cc pit bike in the world today. The attention to detail is incredible — and so is the price!
Warranty
6 months, parts only
Engine
WPB YX140 – 14HP Dyno & Race Tested Engine
Valves
SOHC, 2 valve
Engine Displacement
140.0cc
Fuel System
Carburettor 26mm PE26
Clutch
Wet, 5 disc
Ignition System
CDI
Starting System
Kick start
Transmission
Manual four speed with N-1-2-3-4
Final Drive
428 chain
Frame Design
Triangular seamless beam cradle frame
Swing Arm
Steel 470mm
Handlebar
WPB black 7 series alloy minibike Pro-Taper style fat bars
Front Suspension
USD 770mm Forks
Rear Suspension
280mm 1000lbs nitrogen filled (adjustable pre-load shock)
Front Rim
SDG pattern super strong hubs 17″
Rear Rim
SDG pattern super strong hubs 14″
Rim Lock
Rear
Front Tyres
70/100-17
Rear Tyres
90/100-14
Front Brake
Twin piston front brake
Rear Brake
Single piston rear brake
Wheelbase
1275mm
Ground Clearance
350mm
Seat Height
865mm
Dry Weight
85kg
Packing Size
1430 x 380 x 640mm
Wheel Size
17/14
